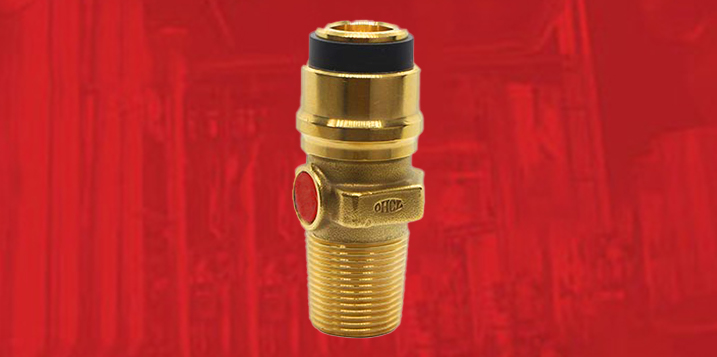

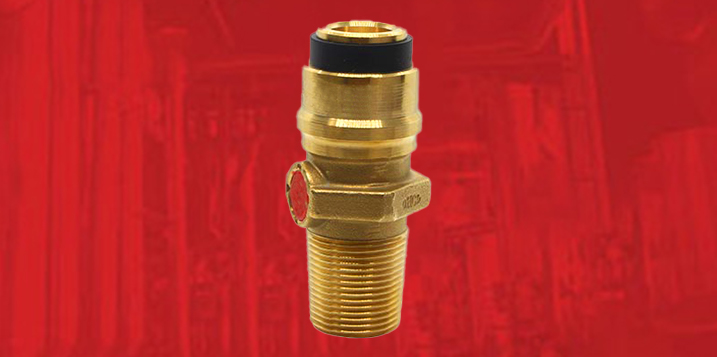

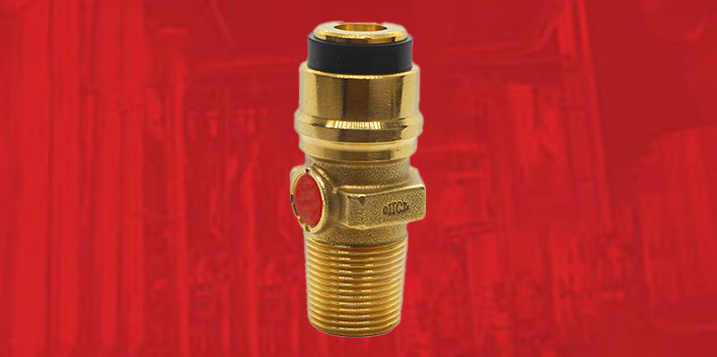

Monobody Jumbo Valves

Monobody Jumbo Valves

Inlet Connections:
Ø23.2x2.0, W28.8 DIN 477, 3/4" - 14 NGT
W19.8 DIN 477, M26.0x1.5-6e & Ø19.3x1.814
Outlet Connections:
Ø35.0mm
Pressure Relief Valve (PRV):
26 Bar, Flow Capacity 4m3 air/min

Meets Requirements of EN 14245 AND EN 13953 (PI MARK) Special design where regular Jumbo spindle Guide has been used and the Mononobody Jumbo Model is the Unique Design of Orson Holdings.

Other Products

Compact Valves

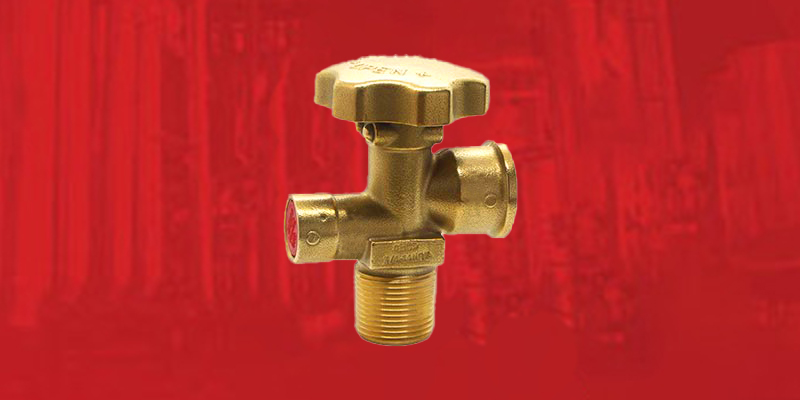

Hand Wheel Type Valves with Safety Relief (PRV)
